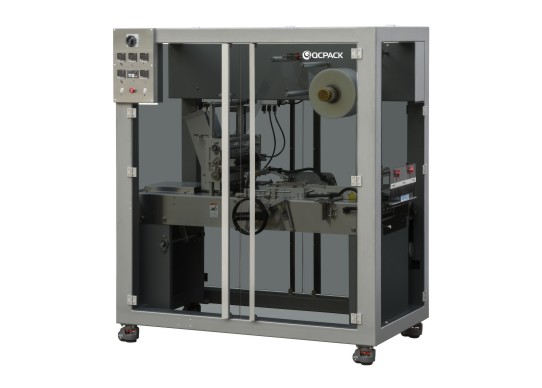

1. Thismachine is a kind of automatic high speed transparent film wrapping equipment, adoptsthe flat push type packaging method, all wrapping and heat sealing action iscompleted by CAM transmission, with fast speed, stable operation and othercharacteristics.
2.Different sizes of items can be packed by changing the mold. The newly designedquick adjustment structure makes the change of mold more simple and quick.
3. Thismachine adopts full aluminum alloy cutting knife holder, single rotary cuttingknife, cutting film accurate, smooth, large and small products without changingthe cutting mechanism.
4.Frequency converter is adopted to adjust the packaging speed, which can reach30 ~ 70 packages/min according to different packaging items.
5. Withdouble - sided fold plastic cosmetic device, make the film packaging more fit,more beautiful.
6. The newquick disassembly reel, with composite adhesive laser anti-counterfeitingunsealing line function, real anti-counterfeiting, moisture-proof role.
7.Automatic feeding and manual feeding two feeding mechanisms, automatic feedingcan be used with fully automated unmanned production line.
8. Theautomatic feeding mechanism has the function of stopping with or without box,with the overload protection device of clamping and torsion force, and theauxiliary film-lowering device of double-layer blowing.
9.Imported stainless steel integrated panel, integrated electrical box installedon the top, car rear door open all-aluminum electric box door.
10. Thewhole machine acrylic safety cover.
|
Packing Material |
BOPP film and gold tear tape |
|
Packing Speed |
30～70 packs/min |
|
Packing Size |
(L)60-260×(W)30-160×(H)15-70mm (L+W(mm)≤280，W+H (mm)≤190) |
|
Electric Supply & Power |
220V 50Hz 5kw |
|
Weight |
350kg |
|
Overall Dimensions |
(L)1500×(W)850×(H)1700mm |
