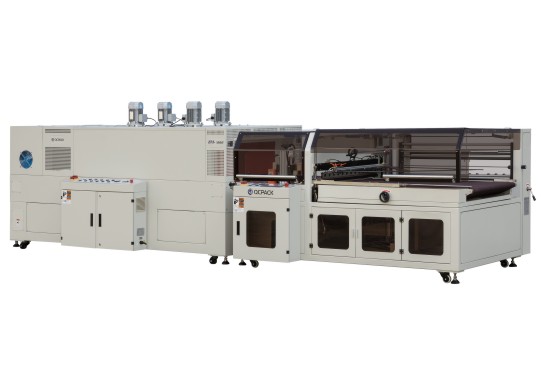

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.
Automatic Grade: Automatic
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: Side type full closed packing
This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.
Automatic Grade: Automatic
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: Side type full closed packing
This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.
Automatic Grade: Automatic
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: Side type full closed packing
This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.
Automatic Grade: Automatic
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: Side type full closed packing
1. Side blade sealing continuously makes the unlimited length of the product;
2. Side sealing lines can be adjusted to the desired position which based on the product’s height
3. It adopts the most advanced OMRON PLC controller and touch operator interface. Touch operator interface accomplish all working date easily;
4. Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-hightemperature. So the sealing will not have cracking, coking and smoking with zero pollution.The sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting;
5. Automatic film feeding punching deice is to drill away the air and make sure the packing result is good;
6. Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;
7. Manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;
|
Model |
BTH-1000 |
BM-1000L |
|
Max. Packing Size |
(L)No limitation (W+H)≤950mm (H)≤250mm |
(L)2000×(W)1000×(H)300mm |
|
Max. Sealing Size |
(L)No limitation (W+H)≤1000mm |
(L)2000×(W)1200×(H)400mm(inner size) |
|
Packing Speed |
15～35 packs/minute |
0-30m/min |
|
Electric Supply & Power |
220V/50Hz 3kw |
380V/50Hz 20kw |
|
Max Current |
6A |
40A |
|
Air Pressure |
5.5kg/cm3 |
/ |
|
Weight |
950kg |
500kg |
|
Overall Dimensions |
(L)2644×(W)1575×(H)1300mm |
(L)2250×(W)1460×(H)1520mm |
