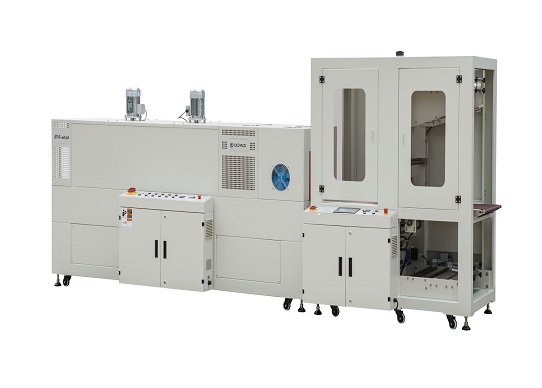

BTX-6040+BM-6040Automatic sleeve shrink wrapping machine

It is suitable for mass shrink packagingof beverage, beer, mineral water ,carton, etc. this machine adopts “PLC”programmable program and intelligent touch screen configuration to realize theintegration of machine and electricity, automatic feeding, wrapping film,sealing and cutting, shrink, cooling and finalizing automatic packagingequipment without manual operation. The whole machine can be connected with theproduction line without human operation.
Back to list >

The main technical parameters

1.  Thebuilt-in omron PLC programmable controller has the functions of safetyprotection and fault alarm, which improves the operation stability of themachine.

2.  Thesealing and cutting knife adopts American Dupont Teflon anti-stick coating, thesealing won't crack and won't coking; Sealing cutter with automatic protectionfunction, can prevent the wrong cutting packaging

3.  Sensorfeeding film, greatly reduce the loss of film

4.  UsingOmron digital display temperature controller, can set the temperature, sealingand cutting temperature is very sensitive and accurate

5.  Automaticfeeding, bag-making length is automatically controlled by the combination ofsensor and timer

6.  Accordingto production requirements for different products replacement, modular design,more convenient replacement

7.  BM-6040adopts double blower motor, heat is evenly heated in the furnace cavity, andthe shrinkage effect is more beautiful

8.  Adoptfrequency converter to control transmission speed and stepless speed regulation

9.  Adoptroller conveyor belt and roller outer heat-resistant silicone tube, each ofwhich can rotate freely to achieve the best shrinkage effect

Technical parameter

Model

BTX-6040

BM-6040

voltage

220-240V/50-60Hz

3Phase 220V,380-460V/50-60Hz

max packing size

(L)600×(W)400×(H)250mm

(L)600×(W)400×(H)250mm

speed

8-12sets/min

15 meters/min

air pressure

1HP/2kw

/

conveyor width

300mm

/

max current

3A

50A

Shrink tunnel size

/

(L)1800×(W)600×(H)400mm

machine size

(L)1750×(W)1260×(H)1875mm

(L)2750×(W)840×(H)1550mm

machine weight

300kg

850kg
